A ramp that drops unevenly, needs a shoulder behind it to close, or leaves a fresh scrape on the ground is not merely being awkward. It is often the first warning that horsebox ramp hinge repair is required. The hinge line carries the ramp’s weight every time it is opened, closed and travelled with. Add wet fields, road salt, bedding, grit and regular loading, and it is no surprise that this area needs proper attention.
For horse owners, the issue is bigger than an inconvenient ramp. A poorly supported ramp can feel unstable under a horse’s feet, damage the ramp structure, strain catches and cables, or fail at the worst possible moment. Horses are very good at noticing when something does not feel right. Once they lose confidence loading, everybody has a longer day.
Why ramp hinges deserve close attention
Ramp hinges work under a different sort of pressure from many other trailer components. They support a large moving panel, often with a horse or handler standing on it, and must still line up accurately enough for the ramp to seal, latch and travel safely. On many horseboxes, particularly busy working trailers, the hinge tubes, pins, brackets and surrounding ramp frame all share the load.
Wear rarely stays in one place. A worn pin can allow movement at the hinge. That movement can enlarge mounting holes, crack welds, pull the ramp out of line and place extra load on springs, cables or gas struts. If the ramp has begun catching on one side, do not assume the latch needs a quick adjustment. The cause may be further down at the hinge line.
Corrosion is another common culprit. It can be visible as flaking metal around the brackets, but it can also develop inside hinge tubes or behind mounting points where mud and damp sit unnoticed. A layer of paint can hide more than it fixes. A professional inspection is the sensible way to establish whether the problem is surface corrosion, worn moving parts or a structural concern.

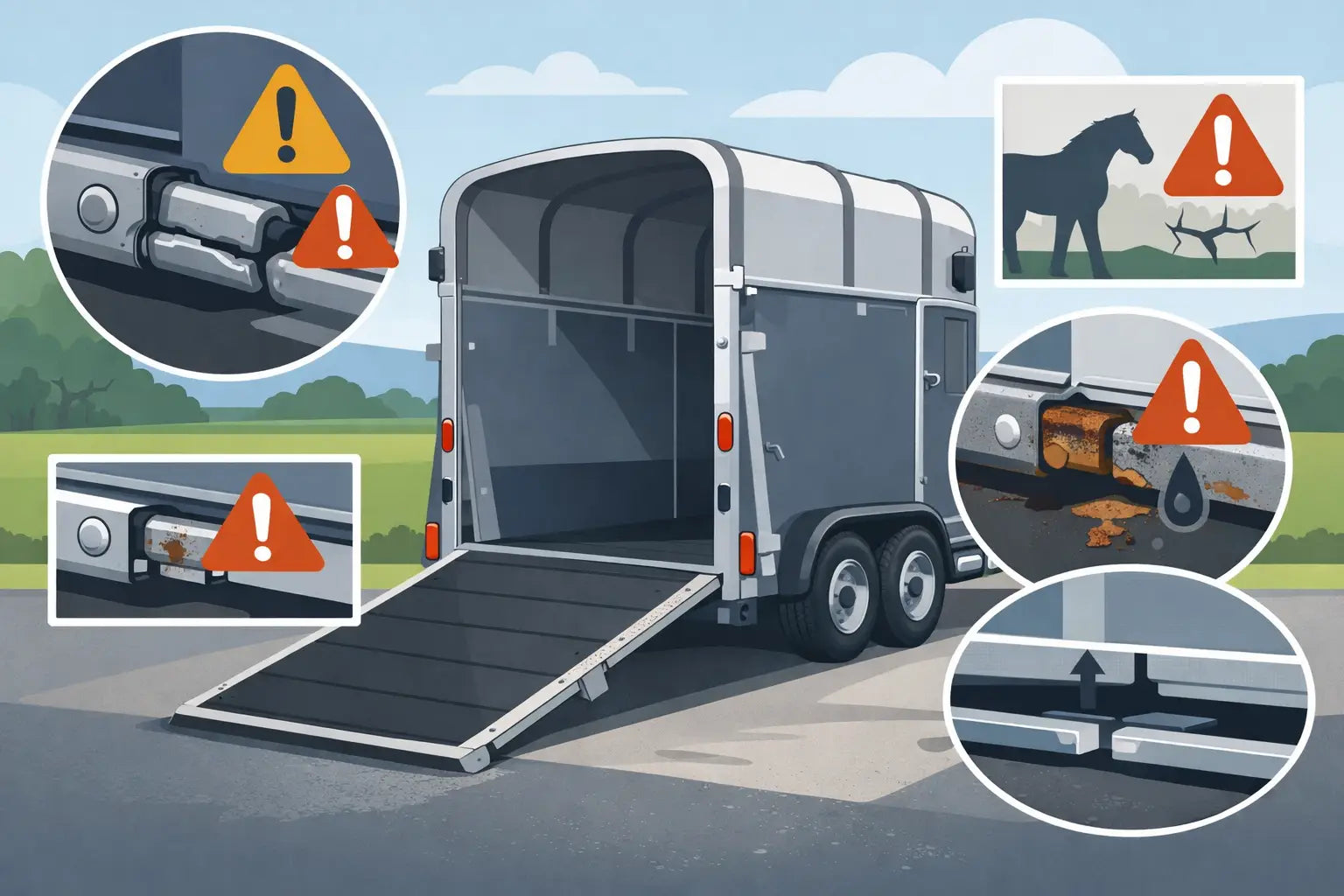

Signs that horsebox ramp hinge repair may be needed
A ramp does not have to come away completely before it becomes a safety issue. Small changes in movement and alignment are worth taking seriously, especially if they have appeared gradually.
Look out for excessive side-to-side movement when the ramp is open, a noticeable drop at one corner, grinding or knocking as it moves, or a hinge that appears dry, rusty or distorted. Difficulty getting catches to engage is also a familiar warning sign. The catches may be doing their job, but the ramp may no longer be arriving in the right position.
Cracks around hinge brackets, ramp framework or welds need prompt assessment. So does a ramp that has started rubbing the floor, rear frame or side panels. These symptoms may point to fatigue in the hinge assembly, but they can also indicate previous impact damage, a bent ramp, deteriorating timber or delamination within the ramp itself.
Do not overlook changes after a tyre failure, a kerb strike or a knock while reversing. Even when the damage seems minor, a heavy ramp can be shifted enough to affect its alignment. Similarly, a ramp that has been held open in high winds or allowed to drop hard can put a serious shock load through hinges and attachments.
The difference between stiffness and wear
Not every stiff hinge requires major work. Old grease, dirt or surface rust can make a sound hinge feel reluctant. Equally, a hinge that moves freely is not automatically healthy if it has too much play. The concern is uncontrolled movement, uneven loading and loss of alignment.
This is where a proper examination matters. A workshop can assess the hinge pin and tube condition, mounting brackets, welds, ramp frame and the supporting components that affect operation. Replacing one visible part without establishing why it wore out can simply move the problem along.
Why a ramp repair is not a job for guesswork
Horsebox ramps are safety-critical assemblies. They are also awkward, heavy and under tension from support systems that differ between makes and models. An incorrect repair can leave a ramp apparently usable but poorly aligned, weak at the mounting point or unable to close securely.
The right repair depends on the horsebox design and the actual failure. In some cases, worn hinge components can be renewed and the ramp carefully realigned. In others, brackets or damaged sections of the ramp frame may require skilled fabrication work. Where corrosion has compromised the surrounding metal, the repair may need to extend beyond the hinge itself. If ramp boards, surface materials or internal structure have deteriorated, these should be assessed at the same time.
There is a trade-off worth making clearly: patching a cracked bracket or fitting a non-matching hinge component may look cheaper on the day, but it can create uneven loading and a repeat failure. Correctly specified parts and sound workshop work cost less than a damaged horsebox, a missed event or an injured horse.
The same applies to welding. Heat, positioning and material condition all matter. A hinge bracket is not just a piece of steel that happens to be nearby. Its position determines the ramp’s movement and the load path through the rear of the trailer. It needs to be repaired or replaced accurately, then checked through its full range of movement.
Related faults that should be checked at the same visit
A hinge problem can expose issues elsewhere, and those issues can also cause a hinge to fail prematurely. When a ramp is being inspected, it makes sense to examine the complete rear loading arrangement rather than treating it as an isolated part.
The workshop should consider ramp catches and striker plates, support cables or springs, floor and ramp condition, rubber covering, rear frame corrosion and lighting or wiring near the ramp area. If the ramp has been sitting low or moving excessively, it may have affected more than the hinge.
On horseboxes fitted with assistance systems, the ramp should open and close in a controlled manner. A ramp that is excessively heavy, rises too sharply or will not stay in position may have a fault with its springs, cables, gas struts or attachments. These systems are there to make operation manageable, not to compensate for a damaged hinge.
It is also worth checking that the ramp closes flush and that seals are doing their job. Water entering around the rear opening can accelerate corrosion and affect timber-based ramp structures. What begins as a stiff corner can turn into an expensive structural repair if damp is left to work away over a winter.
Servicing prevents expensive surprises
Regular trailer servicing is the best time to identify ramp wear before it becomes obvious. While brakes, bearings, tyres, lights and couplings rightly get attention, the ramp deserves the same practical scrutiny. It is used frequently, carries a live load and is exposed to the worst of the weather.
A good inspection can spot developing play, damaged brackets, corrosion and alignment issues before loading becomes difficult. It also gives owners a clear record of work completed and a chance to address parts that are nearing the end of their useful life rather than waiting for a breakdown.
For older horseboxes, servicing is particularly valuable. A trailer may look tidy from a few paces away while corrosion develops beneath coverings, around fixings or in less visible areas of the ramp frame. The fact that a ramp still opens is not proof that it remains safe to use.
Book a professional assessment before the next trip
If your ramp is noisy, uneven, loose, difficult to latch or visibly corroded, avoid loading through it until it has been checked. Do not rely on extra force, temporary packing or a hopeful tug on the catches. A ramp needs to feel predictable for both horse and handler.
Towy Trailer Centre can assess horsebox ramp faults in its Carmarthenshire workshop, identify the condition of the hinge assembly and related components, and advise on a suitable repair using correctly specified parts where required. Bring the trailer in before the next show, clinic or yard move, while the issue is still a repair rather than a recovery job.
