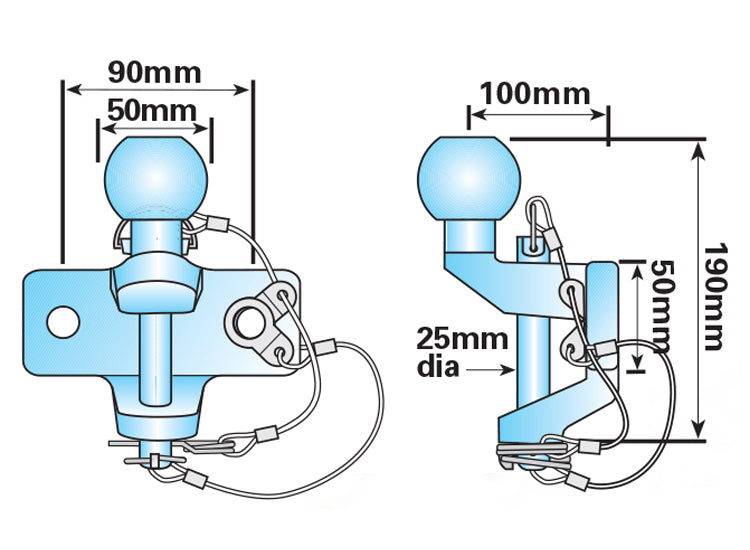

50MM COMBINATION BALL AND JAW HITCH - MP82

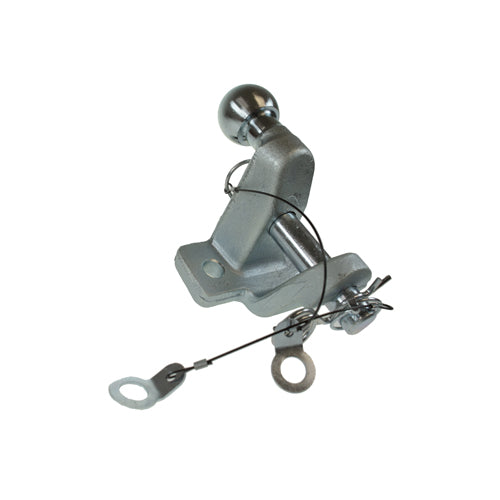

MP84 50mm Ball & Pin Hitch Silver

• 50mm combined ball & pin hitch is commonly fitted to commercial vehicles to allow hitch or towing eye trailers to be towed
• Direct equivalent to MP82, with identical approved load capacities
• D Value = 20.2Kn
• S Value = 350kg
• Approved to UN/ECE Reg 55
• 2 x M16 mounting bolt fixing holes
• 90mm fixing centres
• Box quantity 5
• Pallet quantity 150
• Spare pin MP49484 25mm Ø
• Approval number: E11 55R 0111231

UN/ECE Regulation 55 has been introduced to replace EC94/20 towbar regulation. Regulation 55 is fundamentally similar to EC94/20, but with additional test and administration requirements. All of our towballs and ball & pin hitches are approved to Reg 55.

Fitting instructions for 50mm Ball & Pin Hitch
Use BS3692 grade 8.8 M16 bolts, and class 8 nuts with lock washers, tighten to 240Nm
