A jockey wheel that sinks into the ground, buckles while winding or refuses to retract is more than an inconvenience at the gate. Jockey wheel load ratings determine whether the wheel can safely carry the trailer’s imposed nose load while parked and being manoeuvred. Get the rating wrong and a simple hitching job can become an expensive, awkward and potentially unsafe affair.
For horsebox owners, farmers, landscapers and anyone moving a car transporter or plant trailer, the temptation is to fit the biggest wheel that looks like it will fit the clamp. That is not always the answer. The right jockey wheel must suit the trailer’s actual loading, drawbar arrangement, clamp, ground conditions and intended use.

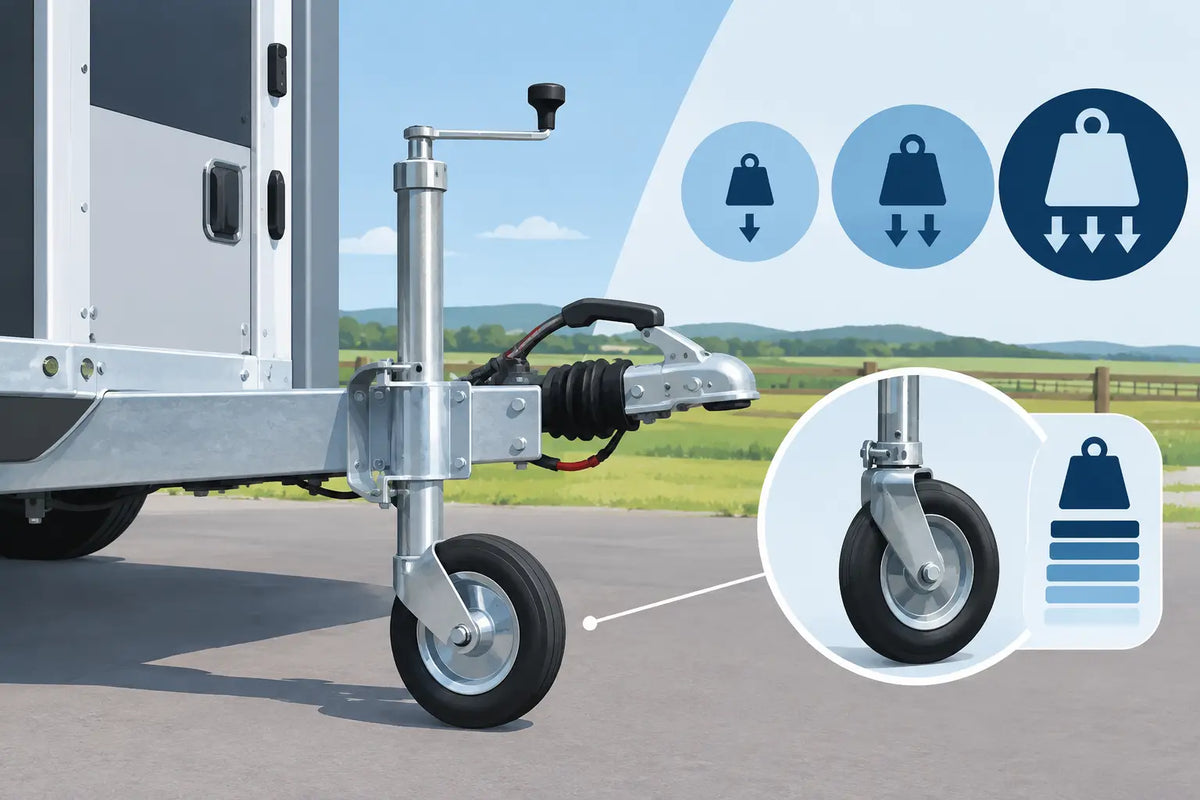

What jockey wheel load ratings actually mean
A jockey wheel rating is normally the maximum vertical load the unit is designed to support. It is commonly shown in kilograms and may be stamped on the outer tube, label or product information. This is a capacity limit, not a suggestion and not a measure of the trailer’s full gross weight.
The critical figure is the load carried at the coupling end of the trailer. A loaded trailer’s weight is shared between its axle or axles and the hitch area. The jockey wheel takes that hitch-end load when the trailer is uncoupled, and can also see considerable strain while the trailer is being pushed, pulled or turned by hand.
A 500kg-rated jockey wheel does not mean it can support a 500kg trailer. Equally, it does not mean a 3,500kg trailer automatically needs a 3,500kg jockey wheel. It means the vertical load applied through the drawbar must remain within 500kg, with sensible allowance for real-world use.
The rating also does not override the permitted noseweight of the towing vehicle, towbar, coupling or trailer. Every part of the towing arrangement has its own limit. Fitting a high-capacity jockey wheel does not make an overloaded hitch acceptable. Physics is stubborn like that.
Static capacity is only part of the story
Published jockey wheel load ratings are generally based on controlled, static loading. Trailers rarely live a controlled, static life. A wheel dropped into a pothole, dragged across rough concrete or twisted sideways on a slope can experience forces well beyond the load shown on the label.
This is why a jockey wheel that appears adequate on paper may still suffer damage in service. A car transporter moved over uneven yard surfaces, for example, puts a different demand on the wheel than a lightly loaded domestic trailer stored on level tarmac. A horsebox can have a substantial front-end load, particularly with tack, water and equipment positioned forward of the axle line.
Ground makes a major difference too. A narrow solid wheel can cope well on a hard workshop floor but sink into wet grass or soft gravel. A pneumatic wheel spreads its load more effectively and can make manoeuvring easier on uneven ground, although it brings its own maintenance needs. A punctured pneumatic jockey wheel is usually discovered at precisely the least convenient moment.
Why the trailer’s loaded nose load matters
The only useful rating choice is one based on the trailer as it is actually used, not just its empty weight or an optimistic guess. Load position changes the imposed load at the drawbar. Heavy machinery, bales, building materials, tack lockers and toolboxes placed towards the front can all increase it.
Too little weight at the front can make a trailer unstable when towed. Too much can overload the coupling, tow vehicle or jockey wheel. The ideal loading arrangement depends on the trailer and its axle position, but it should always stay within the manufacturer’s stated limits.
A proper assessment should consider the trailer’s maximum authorised mass, normal cargo, axle arrangement and coupling specification. It should also account for equipment fitted to the drawbar, such as a spare wheel carrier, gas bottle bracket or storage box. These items may not look dramatic individually, but the drawbar is not a charity collection point.
If the trailer is regularly used near its working limits, choose a properly specified heavy-duty jockey wheel rather than relying on a light-duty unit to cope because it managed last time. The cost difference is small compared with a bent drawbar, damaged coupling or a trailer that drops unexpectedly while loading.
Jockey wheel load ratings and the rest of the assembly
The wheel itself is only one part of the system. The outer tube, inner tube, winding mechanism, mounting clamp, bolts and drawbar all need to be in suitable condition and correctly matched. A high-rated wheel fitted into a worn clamp or a thin, distorted mounting bracket is not a high-rated installation.
Tube diameter matters because it affects compatibility with the clamp and overall strength, but it should not be used as a shortcut for identifying load capacity. Different designs, materials and mechanisms can produce very different ratings from similar-looking components. Check the manufacturer’s specification rather than judging it by eye from the yard gate.
The same applies to automatic folding jockey wheels. They are useful where clearance is limited and frequent hitching is part of the job, but the pivot, locking arrangement and mounting must be inspected carefully. A folding mechanism with excessive play or a lock that does not engage fully needs attention before the trailer goes back into use.
For heavy trailers, a heavy-duty fixed or clamp-mounted jockey wheel may be the better choice. Twin-wheel designs can help spread load and improve movement on loose ground, while a larger wheel diameter can make rough surfaces less punishing. These are practical benefits, not excuses to exceed the stated rating.
Signs the jockey wheel is under strain
A failing jockey wheel often gives warning before it gives up. The trouble is that these warnings are easy to ignore when there is a load to collect and rain starting over the hills.
Look out for a bent or scored inner tube, a wheel that no longer sits square, cracking around the mounting area, a stiff or slipping handle, damaged threads, or a wheel that visibly deflects under normal hitch load. Rust around the tube can hide thinning metal, particularly on trailers kept outside year-round. If the wheel cannot be raised smoothly or the winding mechanism jumps, do not assume a squirt of lubricant has solved the underlying fault.
A jockey wheel that suddenly feels difficult to manoeuvre may be overloaded, seized, punctured, out of alignment or simply trying to roll through unsuitable ground. Forcing it with a vehicle, loader or several determined people can damage the drawbar and clamp. Stop and inspect it properly.
The mounting clamp deserves equal attention. Loose fasteners allow the wheel to twist under load, which can ovalise the tube, damage the clamp and put side load into parts designed mainly for vertical force. Repeated movement is not character. It is wear.
When a rating upgrade is sensible
An upgrade is worth considering where a trailer has gained permanent front-end equipment, regularly carries heavier loads, operates on rough ground or has an existing light-duty assembly that is showing repeated wear. It can also be sensible for commercial users who hitch, unhitch and manoeuvre several times a day.
That said, a larger unit can introduce fitment issues. It may foul a handbrake, coupling handle, bodywork or towing vehicle when raised. It may require a compatible clamp, different mounting position or more clearance beneath the drawbar. On some trailers, changing the jockey wheel arrangement without checking those details simply moves the problem elsewhere.
A rated replacement from a recognised trailer parts manufacturer, selected for the trailer and its use, is a safer bet than an unmarked unit of uncertain origin. If the existing wheel has failed, establish why before fitting another one. A replacement that matches the old part exactly may repeat the same problem if the trailer is routinely overloaded or the clamp is worn.
Professional inspection is money well spent
Jockey wheels are often treated as minor hardware until a trailer cannot be hitched, moved or parked safely. In reality, they sit at a busy point of the trailer where load, movement, corrosion and poor ground all meet. During a trailer service, the jockey wheel, clamp, drawbar, coupling and associated fittings should be checked alongside brakes, bearings, tyres, lights and breakaway equipment.
If there is any doubt about capacity, damage or fitment, have the trailer looked over rather than gambling on a part that carries the front of the trailer. Towy Trailer Centre can assess worn jockey wheel assemblies and supply suitable replacement parts for everything from general-purpose trailers to horseboxes and heavier commercial setups.
A jockey wheel should make hitching and manoeuvring straightforward, not turn every collection into a wrestling match. Choose a rating that suits the genuine imposed load, keep the full assembly in sound condition and get unusual wear inspected before the wheel becomes the reason the trailer stays where it is.
